Jacuzzi Air Channel
Jacuzzi Thermostats are an important part of the Jacuzzi puzzle. The Thermostat regulates the temperature and switches the Heating Element on and off.
These Thermostats usually have an Built in safety feature. When the Temp is set on say 30 Degrees and you want to turn it up to 40 degrees, you can’t just turn it to 40 Degrees. From 30 Degrees, you need to turn it back to zero and then to 40 Degrees.
The best way to test this Thermostat is by turning it from left to right. If it makes a clicking sound, it is most probably fine. If it doesn’t click it might have a problem.
Jacuzzi Waste Valve
Note: When draining your Jacuzzi it is important to remember that there is a heating element that might get damaged if not done correctly.
It is an good idea to turn the Jacuzzi Thermostat to zero before attempting to drain your Jacuzzi. If you need professional assistance with draining your Jacuzzi or repairing the waste valve, please Click Here Now!!
The Waste valve is used to drain the water in your Jacuzzi. a White 50 mm pipe is inserted in to the Jacuzzi Waste Valve and then directed to where you want the water to run out.
Jacuzzi Two-Way and Four-Way Air Switches
Jacuzzi Two Way Air Switches are used when there are more than one bellow button on the top of the Jacuzzi Shell. Air Switches are attached to the Bellow Buttons by means of 3 mm Air Pipes. One Switch activates one component.
Four Way Air Switches are used when there is only one Bellow Button on top of the Jacuzzi Shell. This one Air Switch can activate three different components by continuously pressing it till the desired component is on.
In some cases where there are more than one Bellow Button on the Jacuzzi, but the Air Pipe has somehow come loose from the Bellow Button and it cannot be fished out, we will then suggest to the customer to install a four way air switch to solve his problem of switching components on and off from within the Jacuzzi.
Jacuzzi Air Buttons
Flat Jacuzzi Air Buttons are intended for installations where the Pump System is not further than 5 meters from the actual Jacuzzi.
Jacuzzi Mushroom Bellows are by far the most popular type of bellow button. This button can effectively activate components up to 10 meters from the Jacuzzi.
Electronic Jacuzzi buttons work up to any distance, but are difficult to find due to most of the major Jacuzzi manufacturers closing down.
Jacuzzi Venturi System
Note: When trying to heat the Jacuzzi it is an good idea to keep this Dial closed at all times, as it sucks Cold Air in to the water channel.
If you need professional assistance with installing your blower please Click Here Now!!
The Jacuzzi Venturi System or better known as an Air Control Dial, is situated on top of your Jacuzzi Shell. When opened, air is sucked in to the water channel, which increases the Jacuzzi Jets Pressure tremendously.

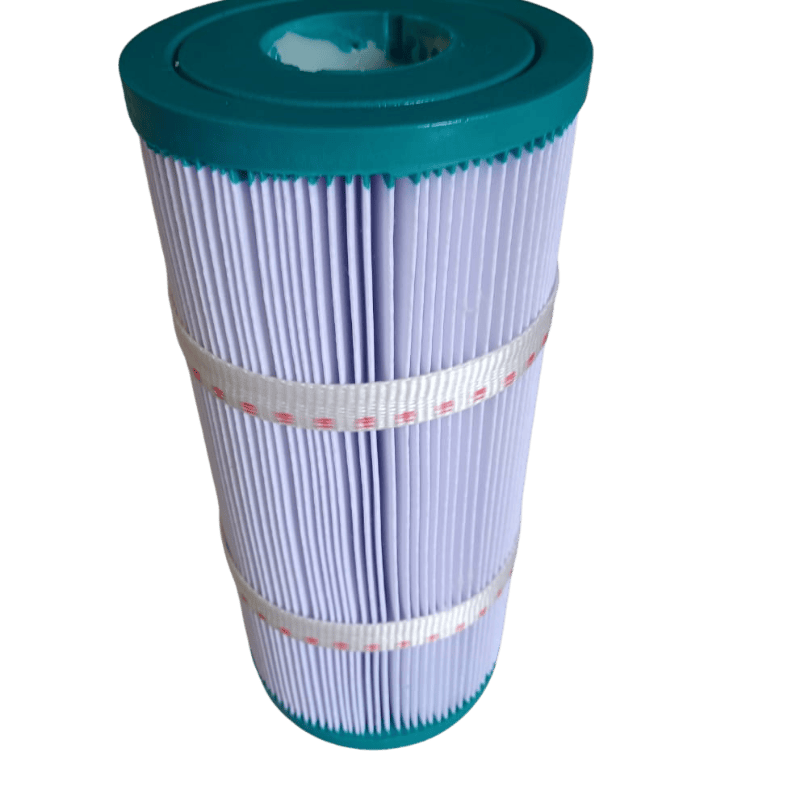

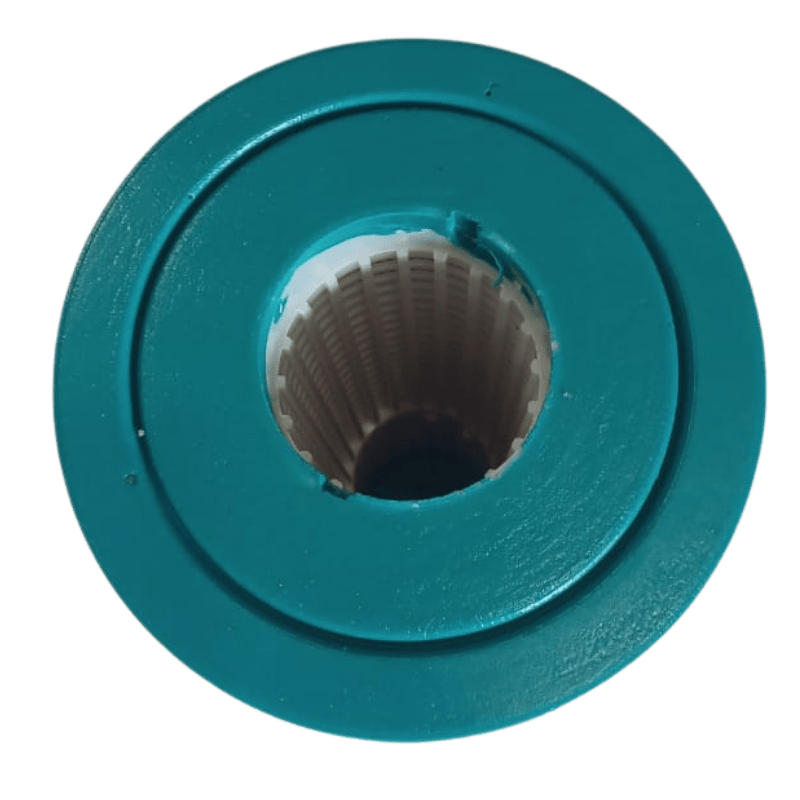

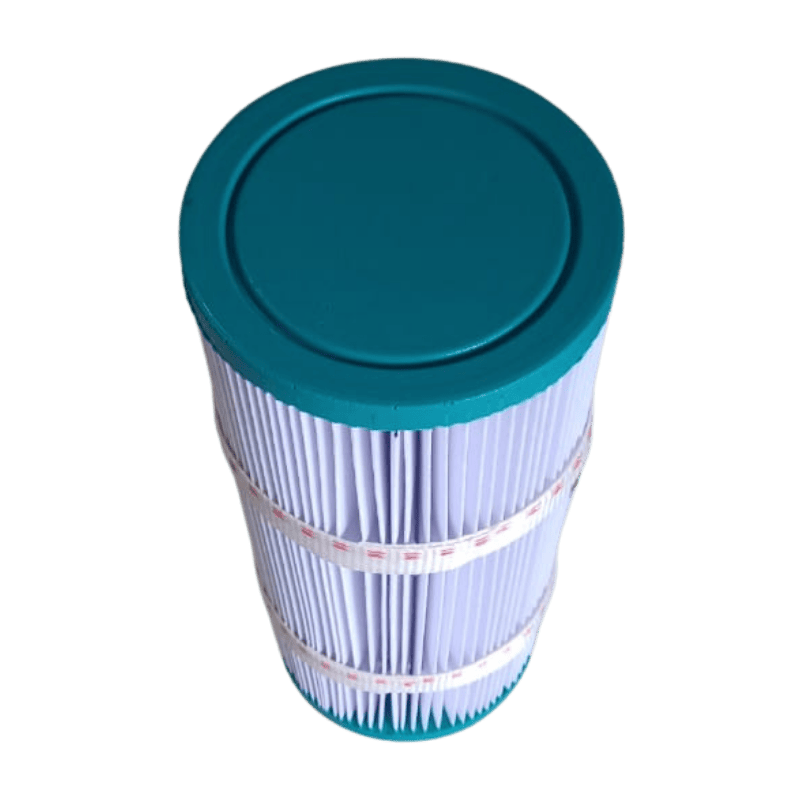

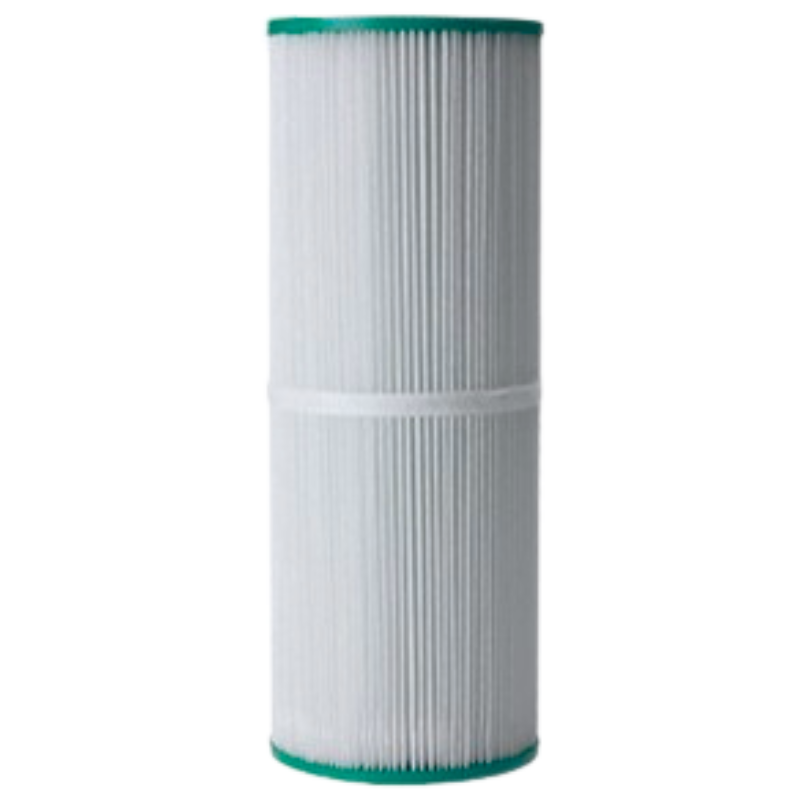

Note: Cleaning your Jacuzzi filter every so often is a very good thing since there is a thing called Hot Tub Rash.
If you need professional assistance with installing your Jacuzzi Filter please Click Here Now!!
Jacuzzi Air Blower
Note: Jacuzzi Air Blower is easy to replace, you should be careful not to switch it on, directly after applying the glue. The fumes of the glue go into the electric motor and once activated, it acts like a bomb as the fumes are ignited by the spark of the electric motor.
Usually the back end, which is not attached to the pipes, shoot off. And, depending on the quality of the PVC glue you are using, that will determine the size of the explosion. If you need professional assistance with installing your blower please Click Here Now!!
Jacuzzi Air Blowers, blow air in to the Jacuzzi Air Channel, which is situated in the seat of your Jacuzzi, the Air Channel distributes the Air evenly over the whole Jacuzzi. Jacuzzi Manufacturers use an alternative method of injecting the Air into the water channel. One of these ways are to connect the Jacuzzi Air Blower to the Hydro Therapy Massage Jets, this results in the pressure of the Jets increasing tremendously.
The problem with this is that if you should massage your muscles with this strong stream of water, it could damage your muscles more than sooth and relax them. The whole idea of blowing air in to the water is to increase the oxygen levels in the water
Jacuzzi Air Blowers can be run for 20 min at a time, then it must be switched off. Wait 10 min to cool down and then on again.The reason being that they have a single stage motor
All of these black blowers were manufactured by a company called Quality®, who make a whole range of Jacuzzi & Swimming Pool Products.
The motor inside this plastic casing is also used in vacuum cleaners, but in this specific application it is used to blow and not suck. Most of these blowers have a single stage motor inside, causing it to get very hot due to the air inlet restrictions.
On the two stage motor, there is an extra fan attached to the shaft of the motor allowing the motor to be cooled while in operation. Tests we have done on these two stage motors, have concluded that you can run that motor effectively for 9 hours on end without the glue melting or the pipes sagging.
The most strain this motor can have is when you switch it off and the water from the Jacuzzi fills up the air channel. Once the blower is switched on it has to blow all that water out the air channel before it can start bubbling from the seat.
Jacuzzi Blower Motor – Two Stage
The correct way to install a blower. If the blower is not higher then the water level, a double goose neck needs to be plumbed in order for the water not to push back into the blower.
